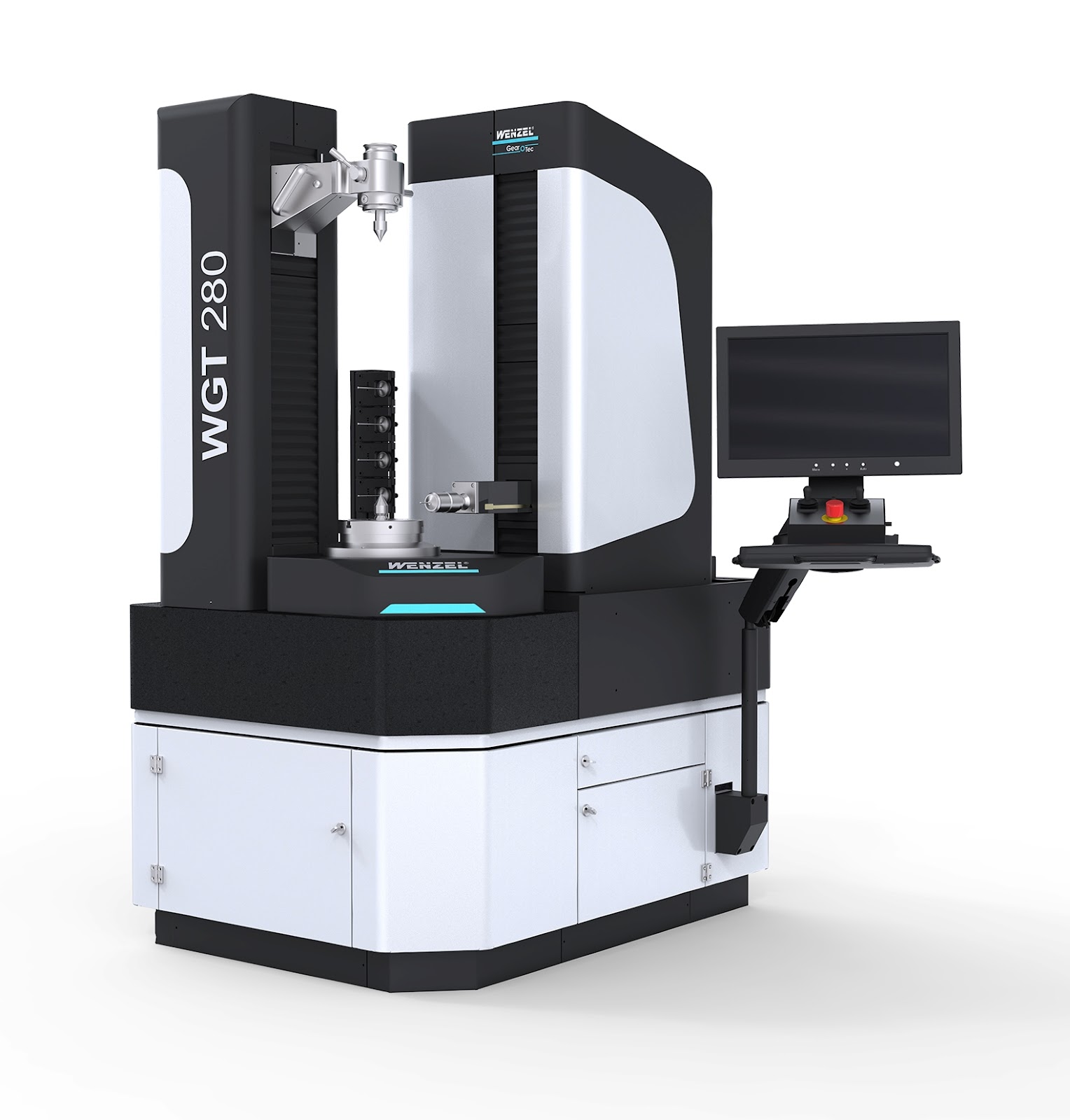

NEW WGT 280 For Measurement of Small Gears

Wenzel GearTec has for many years produced the WGT range of innovative gear tesing machines.

The New WGT 280 is the first model of a new generation of gear measuring machines in a new industrial design

The WGT 280 offers a gear measuring machine for the fast and efficient analysis of small gears up to a maximum diameter of 280 mm. Because of its compact construction and small footprint it can be easily integrated into existing processes. The easy to access measuring volume allows a simple loading and operation of the measuring system.

The high precise rotary table can be loaded with parts up to 50 kg weight. Equipped is the WGT 280 with the Renishaw scanning probe SP 600 and allows the measurement of gears starting with a module of 0.5 as standard. For the accurate measurement of shafts the gear measuring machine can be equipped additionally with a tail stock. The WGT 280 allows measurements in a Z range of 500 mm.

The New WGT is be demonstrated for the first time at the Control Show 2013 in Stuttgart in Hall 5 / Stand 5204.

If you need more information on the new WGT 280 please contact Wenzel UK sales on 01452 728298 or visit our Website www.wenzel-cmm.co.uk for more information.

NEW X-Cite Manual CMM

Wenzel UK is pleased to announce the launch of the new X-Cite Manual CMM to the UK Market.

Having done some extensive research over the last few months it is clear that there is a very boyant market for the Manual CMM against that of an articulated arm especially where accuracy is an issue. With our new Manual CMM X-Cite  we hope our offering is both versatile but also priced competitively.


The XCite is the new manual 3D CMM has been designed for quick and easy verification of simple parts and with an excellent price to performance ratio, enabling a simple entry into the world of 3D metrology and CMM Measurement.

Fitted with a compact Renishaw sensor, the XCite collects probe points which are stored and evaluated with the powerful measuring software Metrosoft QUARTIS.

The XCite Manual CMM offers easy operation and an attractive entry price. The all-round system is suitable for quality control of components in the manufacturing environment as well as for classic measurement of work pieces in standards rooms.

The XCite Manual CMM It is an inexpensive alternative to gauges or multipoint measurement systems.

Available is a number of Size Options.

• X - 500 / 700
• Z - 500
• Y - 600 / 800/ 1000 / 1200 / 1500

For more information and our introduction prices please visit our new dedicated Website www.manualcmm.co.uk or contact Wenzel UK sales on 01452 728298

New Manual CMM X-Cite

NEW LH Demo CMM Arrives at Wenzel UK Ltd

Launched during the Control show in 2012, the new Generation LH CMM has just arrived at Wenzel UK Ltd. This new generation CMM has been extensivily re-styled for the modern industrial setting.

We are just installing a new Generation LH87 CMM with table length of 1500mm.

Available now for customer demonstrations with Metrosoft QUARTIS Measurement software.

If you are interested in details or a demo on the new Generation LH CMM with either Renishaw PH20 or PH10M please contact us on 01452 728298 or email info@uk.wenzel-cmm.com or visit our website for more information.


Metrosoft QUARTIS Measurement Software

Metrosoft QUARTIS has for the last few years been introduced by the Wenzel Group on the range of CMM's and other associated Metrology systems.

Metrosoft QUARTIS is the first measuring software using the Microsoft® Office Fluent™ user interface. Metrosoft QUARTIS is based on the decade of knowledge of one of the most successful measuring software providers worldwide.

The result is a measuring software with an uncluttered, flexible and result orientated workspace that means CMM users so they can spend more time and energy focused on their work where measurement results can now be generated even faster and easier.

Metrosoft QUARTIS is able to support all the new Renishaw probe systems such as PH20 and PHS.

Why not take a look at the Metrosoft QUARTIS Demo video

If you would like more information on how Wenzel UK with Metrosoft QUARTIS can help you on your CMM please call us on 01452 728298 or email info@uk.wenzel-cmm.com or visit http://www.wenzel-cmm.co.uk/quartis.asp for more information.

2nd User Horizontal Arm CMM For Sale

Here is a great opportunity to purchase a 2nd User Wenzel RS 1215 Horizontal Arm.

This machine has been supplied and serviced since new by Wenzel UK and is available now for immediate sale.

The machine is ideal for a range of sheet metal applications and is in excellent overall condition.

The machine is offered with all new QUARTIS Measurment software with new Dell PC, full training and installation.

Sale Price - £25,000 PLUS VAT


For more information please contact Wenzel UK sales on 01452 728298

Technical Specification
Model	RS1215 CNC CMM
Year Of Manufacture	1995
Measuring Range	X=2000 Y=1200 Z=1500
Probe Uncertainty  MPEP
Volumetric Length Measuring Uncertainty  MPEE	25.0+( L / 40.0mm )
Max 3D Velocity (mm/sec)	519
Max 3D Acceleration (mm/sec2)	700
Max part Weight (kg)	3400
System Weight (kg)	5100
Software	Metrosoft Quartis
Probing System	PH10M with TP2
PC System	Dell PC
Training	4 Days Training
Delivery/Installation and Calibration	Included UK Mainland Calibration to ISO-10360
Warranty	12 Months on all New Parts 6 Months on all 2nd User Parts



Wenzel RS Horizontal Arm CMM
